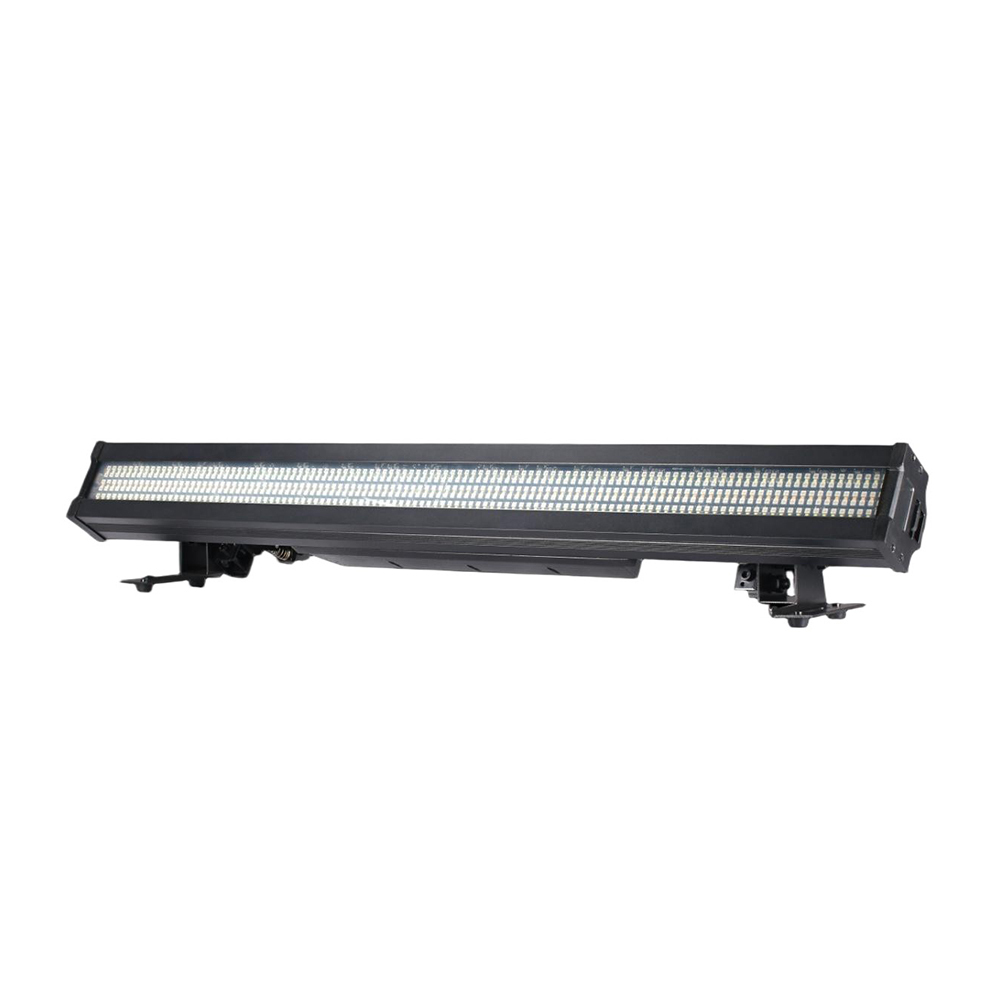

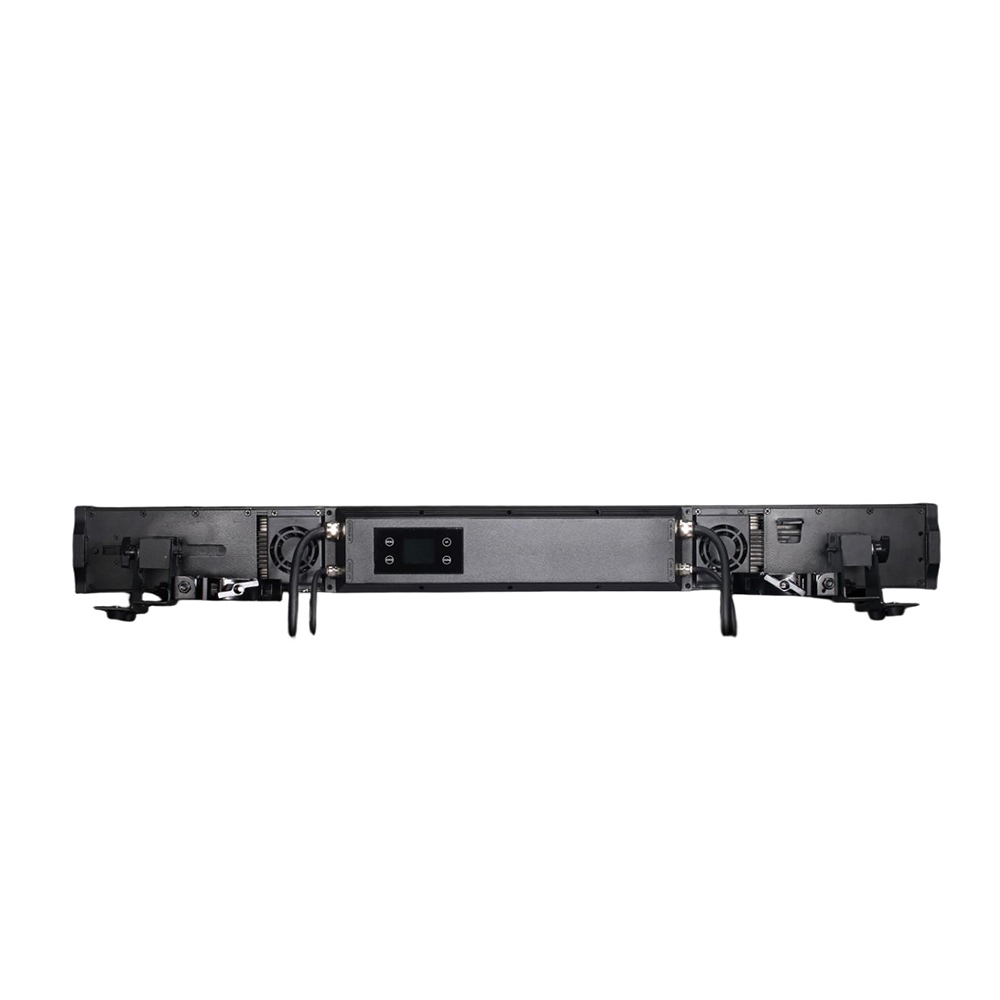

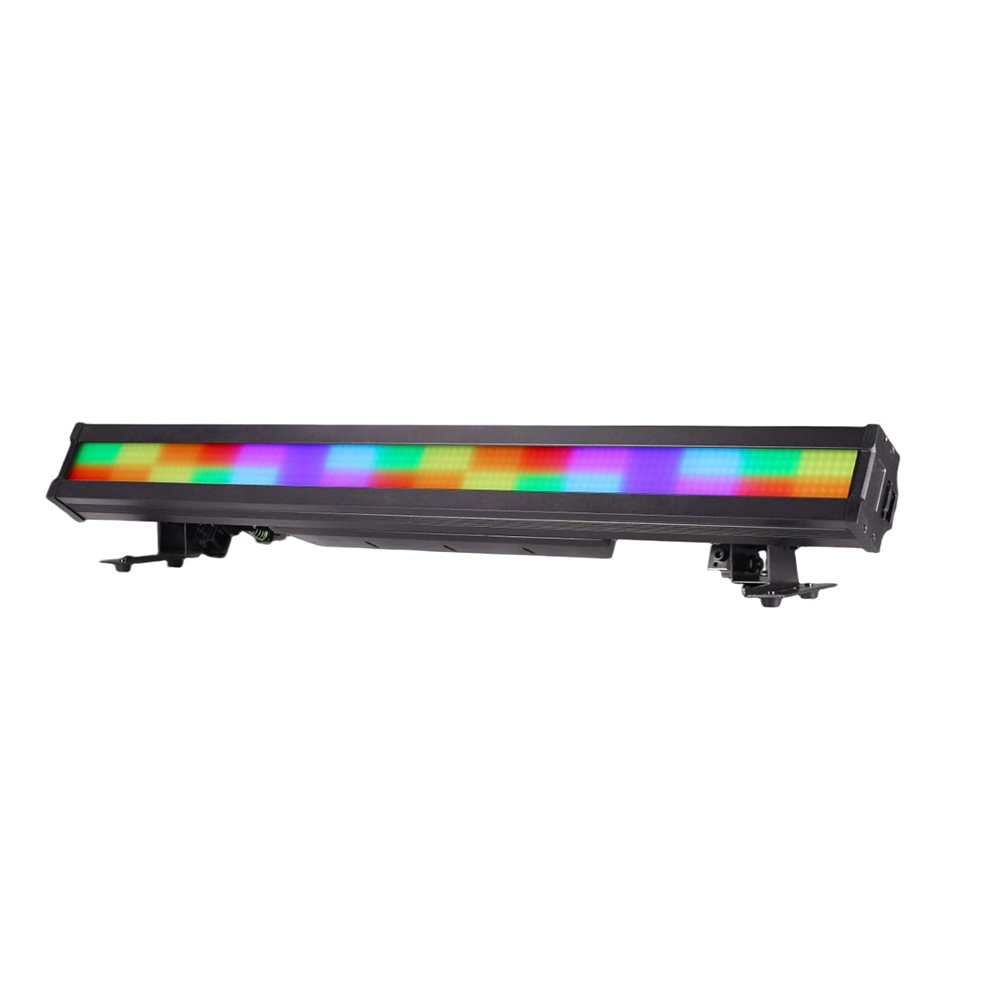

IP Pixel Strobe Bar

Name: IP Pixel Strobe Bar
Brand: Both Lighting
SKU: SLB1008P
Availability: InStock
Rating: 5 (1 reviews)

SLB1008P

IP65 Waterproof 224x1w LED Pixel Strobe Bar 32 Segment Wall Washer Panel Light

Get A Quote Add to Quote List

Main features:

LED: 672 pcs 5050 0.5W 32 segments, 112 pcs 1W yellow light 16 segments, 224 pcs 1W white light 32 segments
Lighting angle: 120°
Atomization: with electronic atomization function, atomization adjustment
Operating mode: DMX512, self-propelled, master-slave, voice control, with RDM function
Channels: 7/15/21/39/112/17/33/65/68/117/70/19/145CH
Protection level
IP65, waterproof, fog-proof, sand-proof, all-weather protection

Product Description

Videos

Features

Projects

Product Description

【Powerful LED Configuration】
Equipped with 672 pcs 5050 0.5W LEDs (32 segments), 112 pcs 1W yellow LEDs (16 segments), and 224 pcs 1W white LEDs (32 segments), delivering rich, layered illumination with precise segment control for dynamic pixel effects.

【High-Performance Output】
Operates at a total power of 450W, with a maximum flash power of 700W for impactful strobe effects. LEDs boast a 20,000-hour lifespan, ensuring long-term reliability.

【Versatile Lighting Control】
Compatible with multiple operating modes: DMX512 (with 7/15/21/39/112/17/33/65/68/117/70/19/145 channel options), standalone, master-slave, and sound activation. Includes RDM functionality for easy remote configuration.
Supports 0-100% linear dimming for smooth brightness transitions and strobe effects adjustable from 0 to 25 times per second, with a 120° wide lighting angle for extensive coverage. Features an electronic atomization function with adjustable settings, allowing seamless shifts between sharp, defined beams and soft, diffused washes.

【Durable All-Weather Design】
IP65-rated for waterproof, fog-proof, and sand-proof protection, ensuring stable performance in harsh outdoor or indoor environments.

OPTICS

LEDs:
672 pcs 5050 0.5W LEDs (32 segments)
112 pcs 1W yellow LEDs (16 segments)
224 pcs 1W white LEDs (32 segments)
Beam Angle: 120°
Dimming: 0-100% linear dimming.
Strobe: 0-25 times per second.
Lifetime: 20,000 hours LED life.

CONTROL

Operating Modes: DMX512, self-propelled (standalone), master-slave, voice control.
Protocol Features: Supports RDM function.
DMX Channels: Multiple channel options: 7/15/21/39/112/17/33/65/68/117/70/19/145CH.
Atomization: Equipped with electronic atomization function and adjustable atomization.

POWER CONSUMPTION

Input Voltage: AC 90-240V, 50-60Hz.
Total Power: 450W.
Maximum Flash Power: 700W.

PHYSICAL

Dimensions: 1000 x 100 x 189 mm.
Weight: 11.5 kg.
IP Rating: IP65 (waterproof, fog-proof, sand-proof, all-weather protection).
