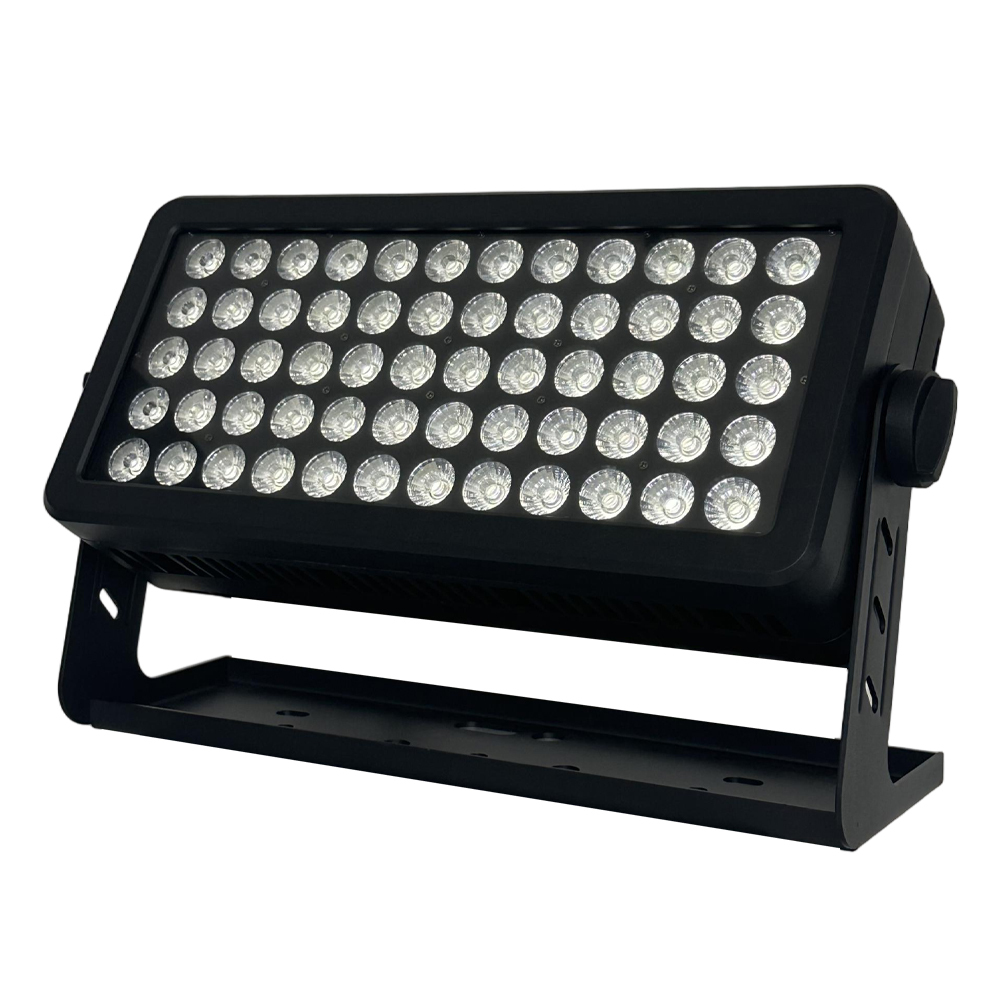

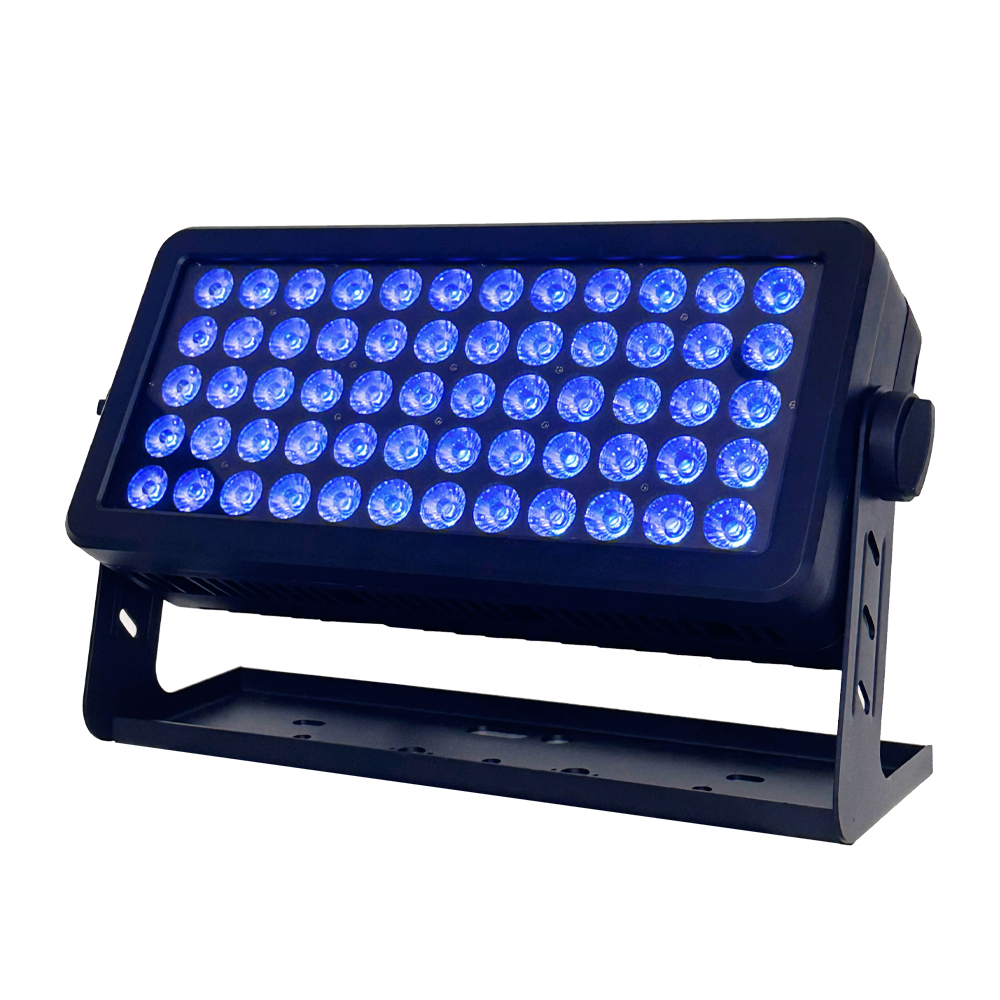

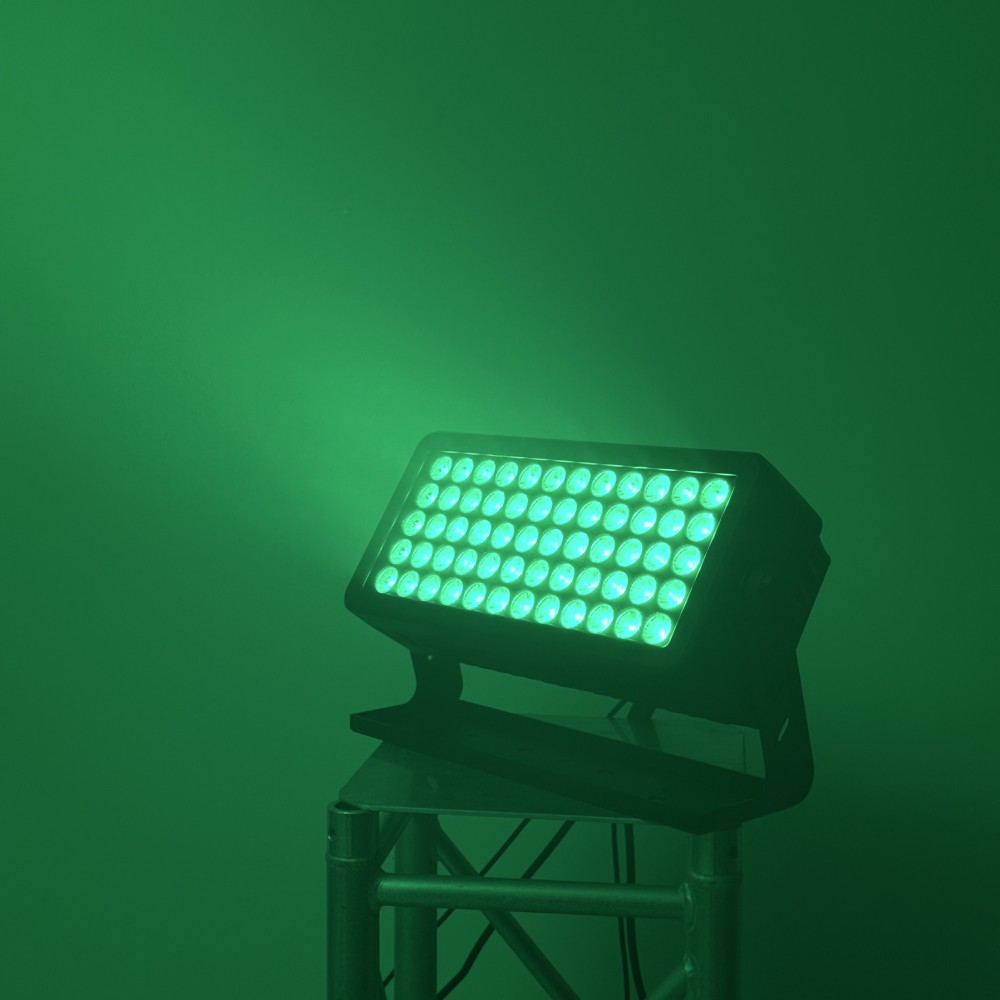

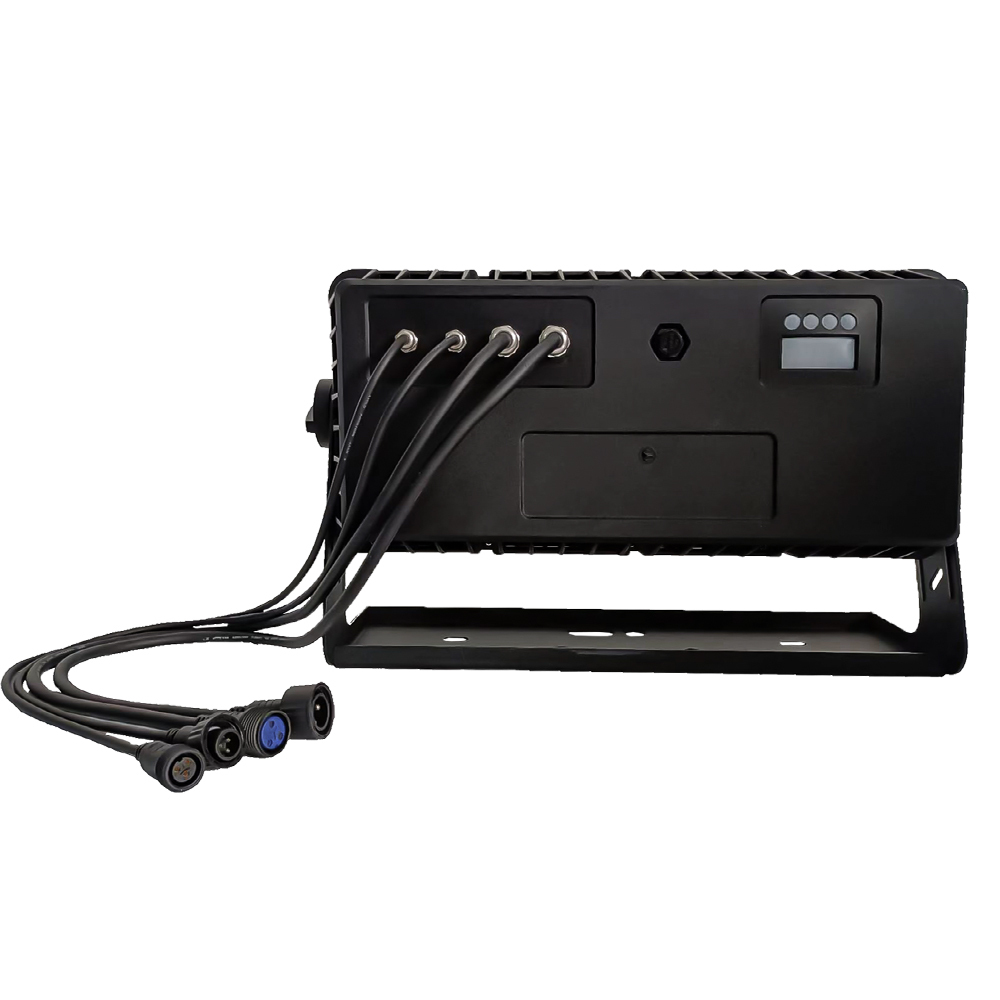

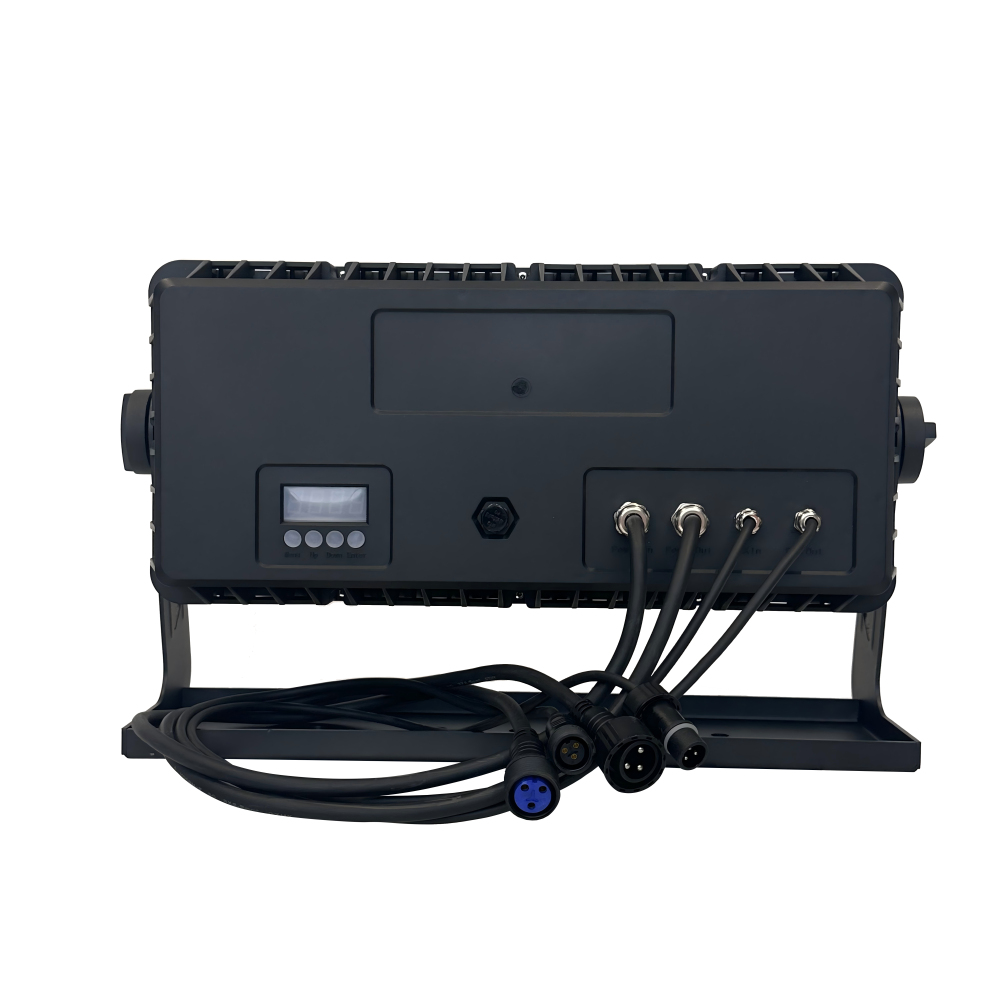

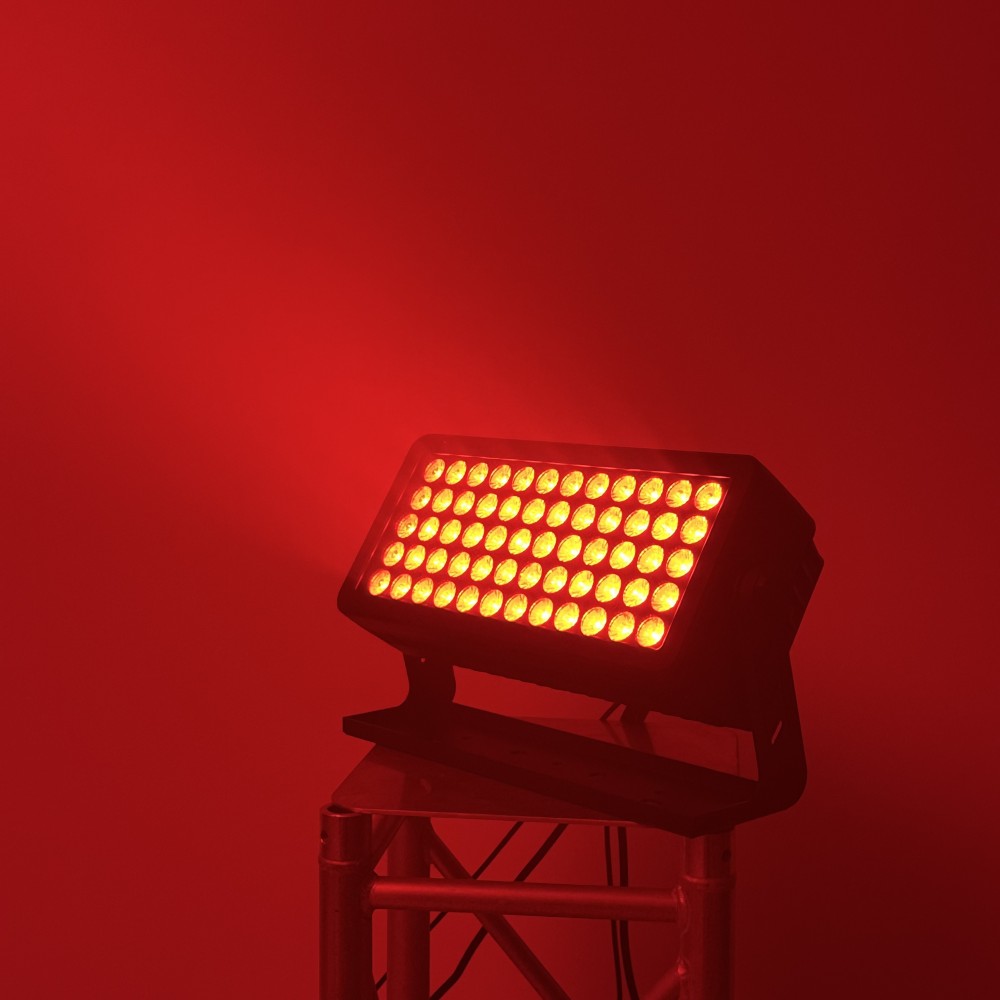

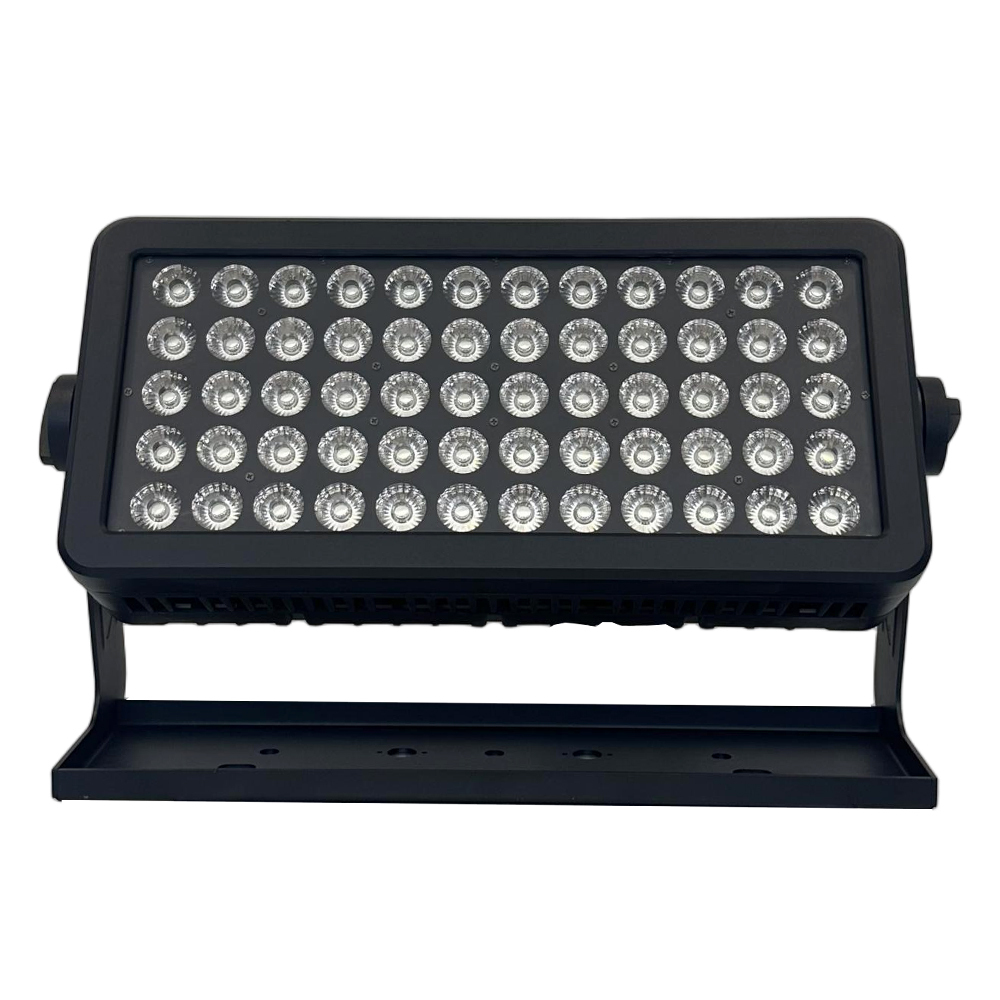

IP LED City Light

Name: IP LED City Light
Brand: Both Lighting
SKU: SKU:WL6010IP
Availability: InStock
Rating: 5 (1 reviews)

SKU:WL6010IP

IP65 Waterproof 60*10W RGBW IP65 LED City Color Wall Washer Bar Panel Light

Get A Quote Add to Quote List

Main features:

LED:60 pcs high-power RGBW 10W 4IN1 LEDs
Lens angle:10°/25°/45°/60°lens beam angle optional
Dimmer:0-100% 32bit linear dimming
Strobe:1-20 times/second strobe
Protocol: USITT DMX-512, RDM
Channel: 4/6/8 DMX channels
4 dimming curves:linear,square,inverse square,S curve
Stand-alone mode: Color step,Color shade,Auto,Slave,Static color setting, Auto program choice.
IP Rating: IP65

Product Description

Videos

Features

Projects

Product Description

【High-Power RGBW Illumination】
Equipped with 60 pcs high-power 10W 4-in-1 RGBW LEDs, delivering vibrant, full-spectrum color mixing. Boasts an impressive 50,000-hour expected lifespan for long-term reliability.

【Flexible Beam Control】
Offers selectable lens angles (10°, 25°, 45°, 60°) to adapt to diverse lighting needs, from focused beams to wide coverage.

【Versatile Operation Modes】
Supports USITT DMX-512 and RDM protocols with 4/6/8 DMX channel options. Standalone modes include color step, color shade, auto programs, slave, static color setting, and auto program selection for flexible use without a console.

【All-Weather Performance】
Constructed with aluminum housing (black finish) for ruggedness. IP65-rated for waterproof, dustproof protection, ensuring reliable operation in harsh environments.

OPTICS

LEDs: 60 pcs high-power 10W RGBW 4-in-1 LEDs.
Total Raw Power: 600W (60 LEDs x 10W).
Beam Angle: Optional lens beam angles (10°, 25°, 45°, 60°).
Dimming: 0-100% with 32-bit linear dimming.
Strobe: 1-20 times per second.
Lifetime: 50,000 hours expected LED lifetime.

CONTROL

Protocol: USITT DMX-512, RDM.
DMX Channels: 4/6/8 channels selectable.
Dimming Curves: 4 curves - Linear, Square, Inverse Square, S-Curve.
Stand-alone Modes: Color step, Color shade, Auto, Slave, Static color, and Auto program.

POWER CONSUMPTION

Input Voltage: AC 90-245V, 50/60Hz.
Power Consumption: 400W ±10%.

PHYSICAL

Housing: Aluminum, black finish.
IP Rating: IP65 (Dust-tight and protected against water jets).
Heat Dissipation: Chassis + forced air cooling with a low-noise IP fan.
Operating Temperature: -30°C / 86°F to 50°C / 122°F.
Display: 180° rotatable display board for flexible installation.
Size & Weight: 550 x 170 x 332 mm; 15.25 Kg.
