1. High-Power RGB Laser System Features a 6W combined laser output with precise wavelengths: red (1000mW/638nm), green (1600mW/520nm), and blue (3400mW/455nm). Delivers vibrant, long-range projections with a narrow beam divergence of <1.3mrad for sharp and clear visual effects.
2. Multi-Protocol Control & High-Speed Scanning Supports versatile control via ILDA, DMX512, sound activation, auto mode, and RJ45 connectivity. Equipped with a 25kpps high-speed scanning system and 100kHz analog modulation for smooth, dynamic graphics and precise beam control.
3. Advanced Hybrid Cooling & Robust Design Utilizes efficient air cooling combined with TEC (thermoelectric cooling) technology to maintain stable performance. Housed in a durable aluminum casing with a wide operating temperature range (-10°C to 45°C), ensuring reliability in various environments.
OPTICS

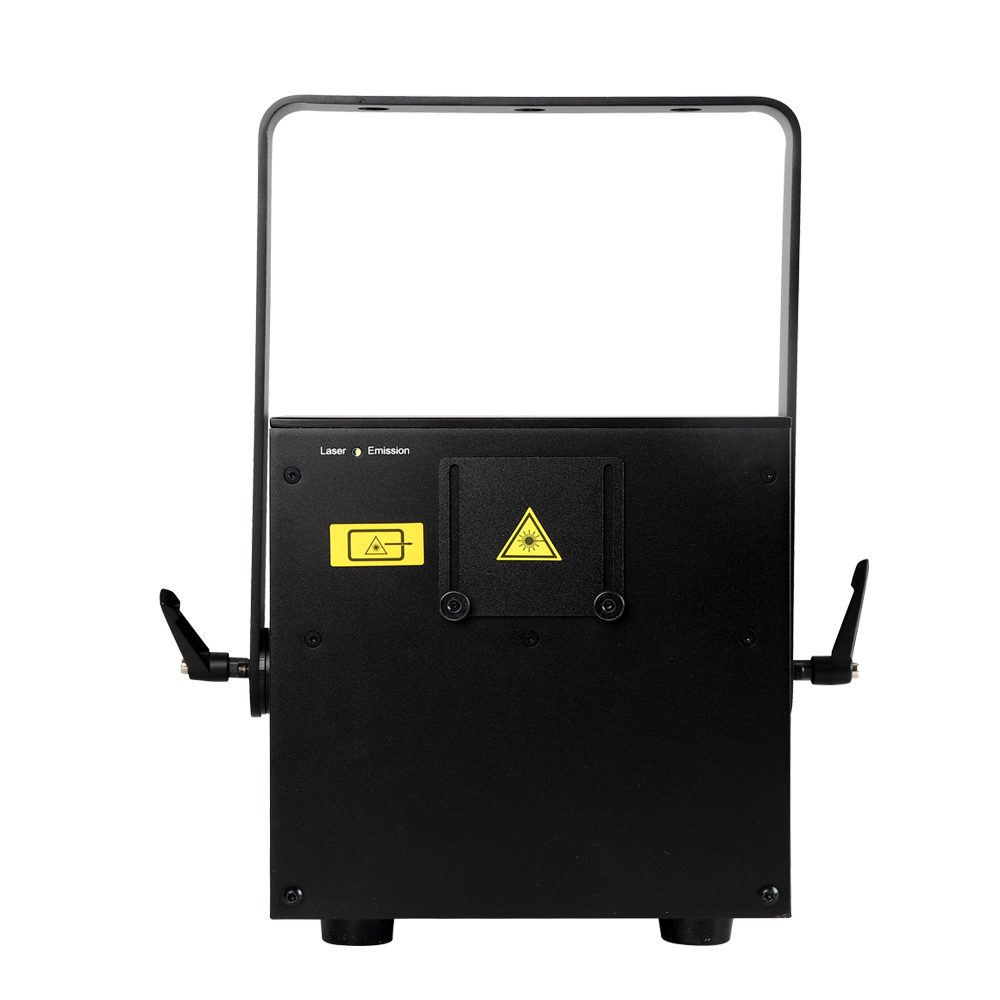

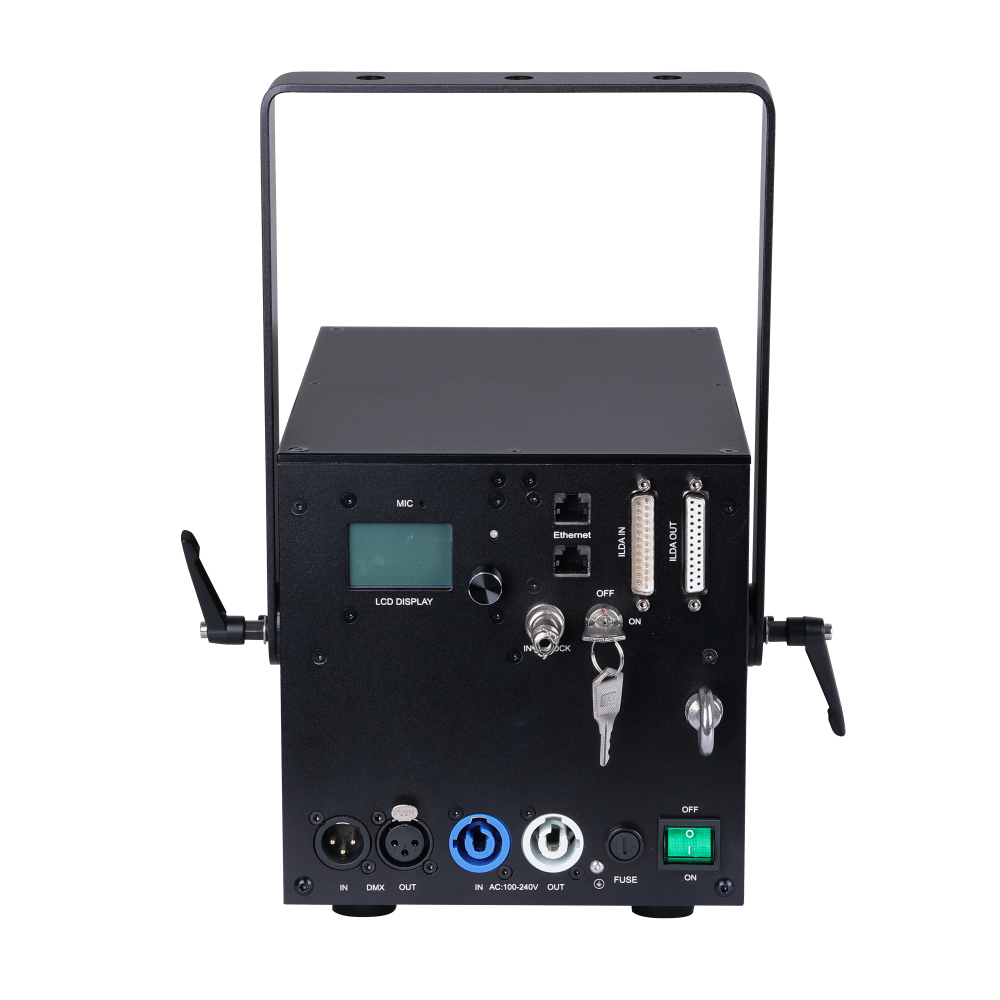

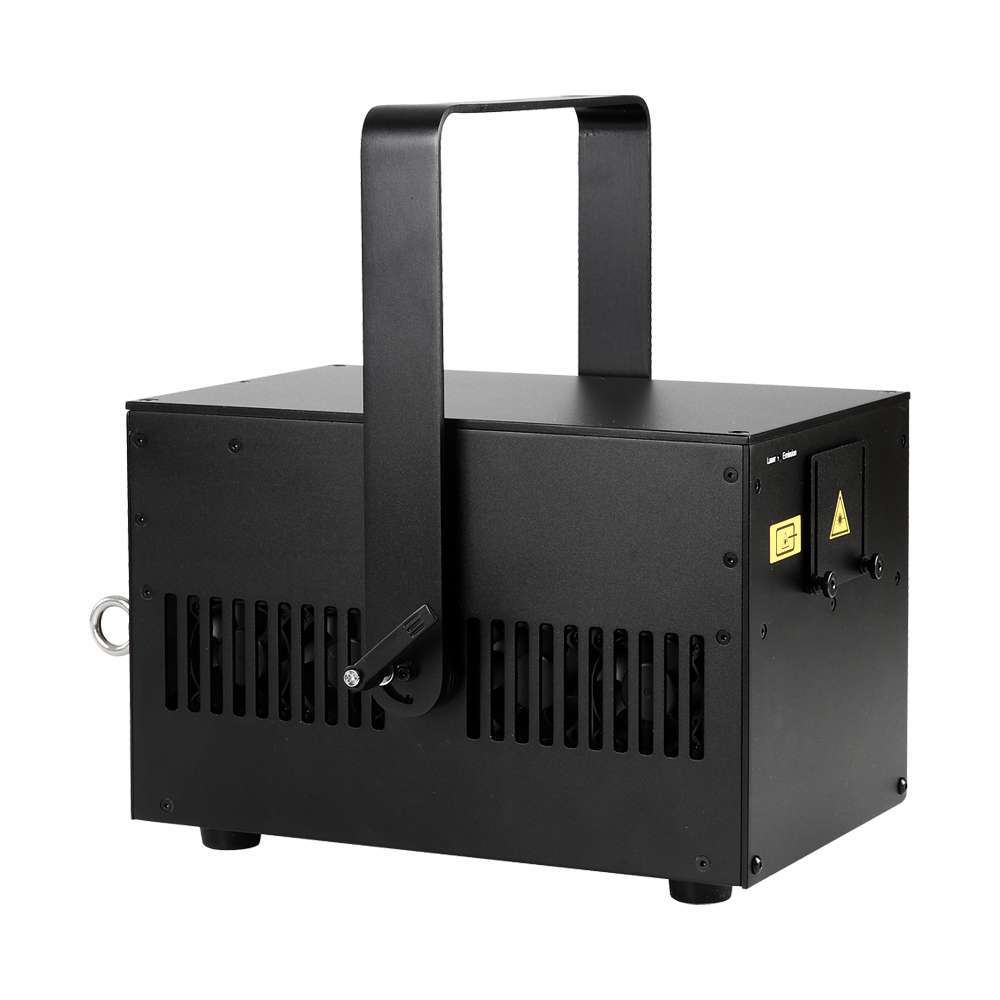

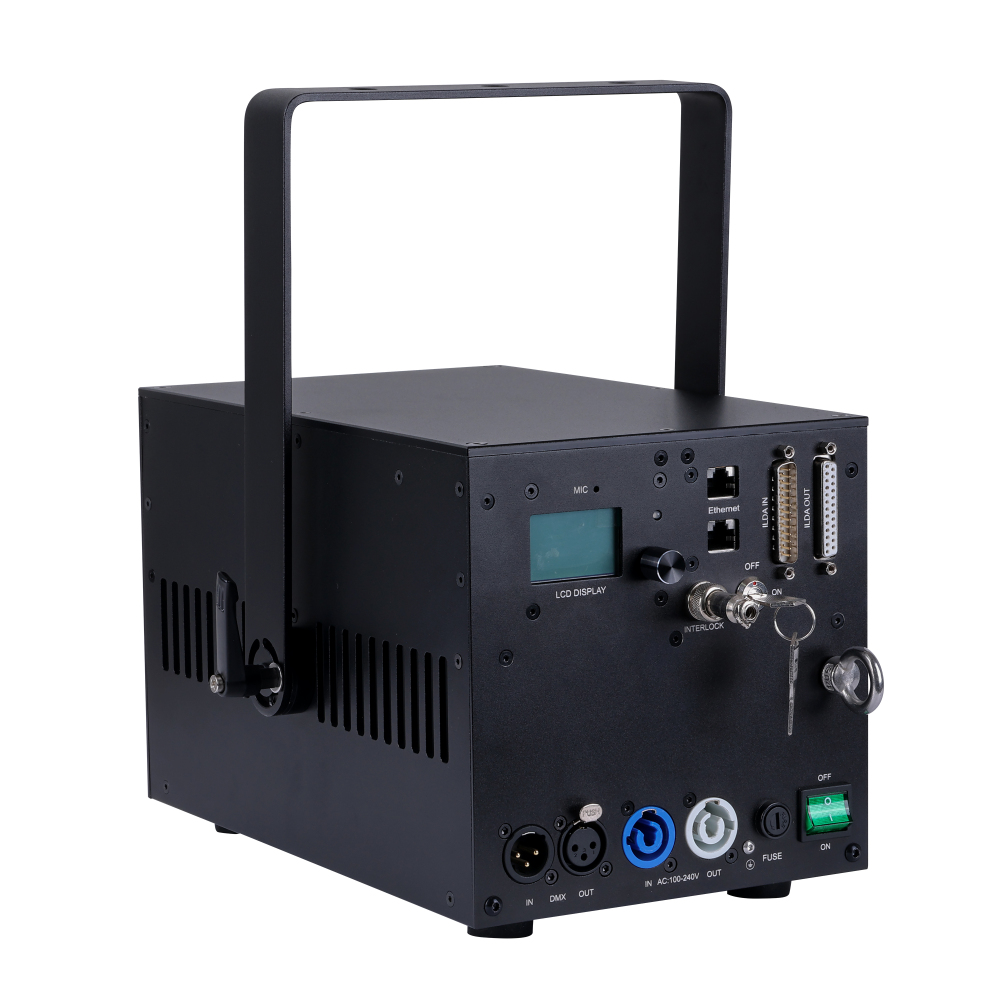

6W RGB Laser
Working temperature: -10C°-45C°
CONTROL
Control mode: Control mode: ILDA, DMX512, SOUND (sound control),AUTO (self-propelled), RJ45
Modulation mode: analog modulation 100Khz
Scanning system: 25kpps ±30°
POWER CONSUMPTION
Voltage: AC110V-240V 50/60Hz
Laser power/wavelength: R (red): 500mW 638nm
G (green): 850mW 520nm
B (blue): 1650mW 455nm
Full power: Test power after passing through the galvanometer
Divergence angle: ca.5mm/＜1.3mrad
PHYSICAL
Casing material: aluminum
Cooling method: air cooling
Size:290(L)*180(w)*195(H)mm
N.W.: 7.0KG
