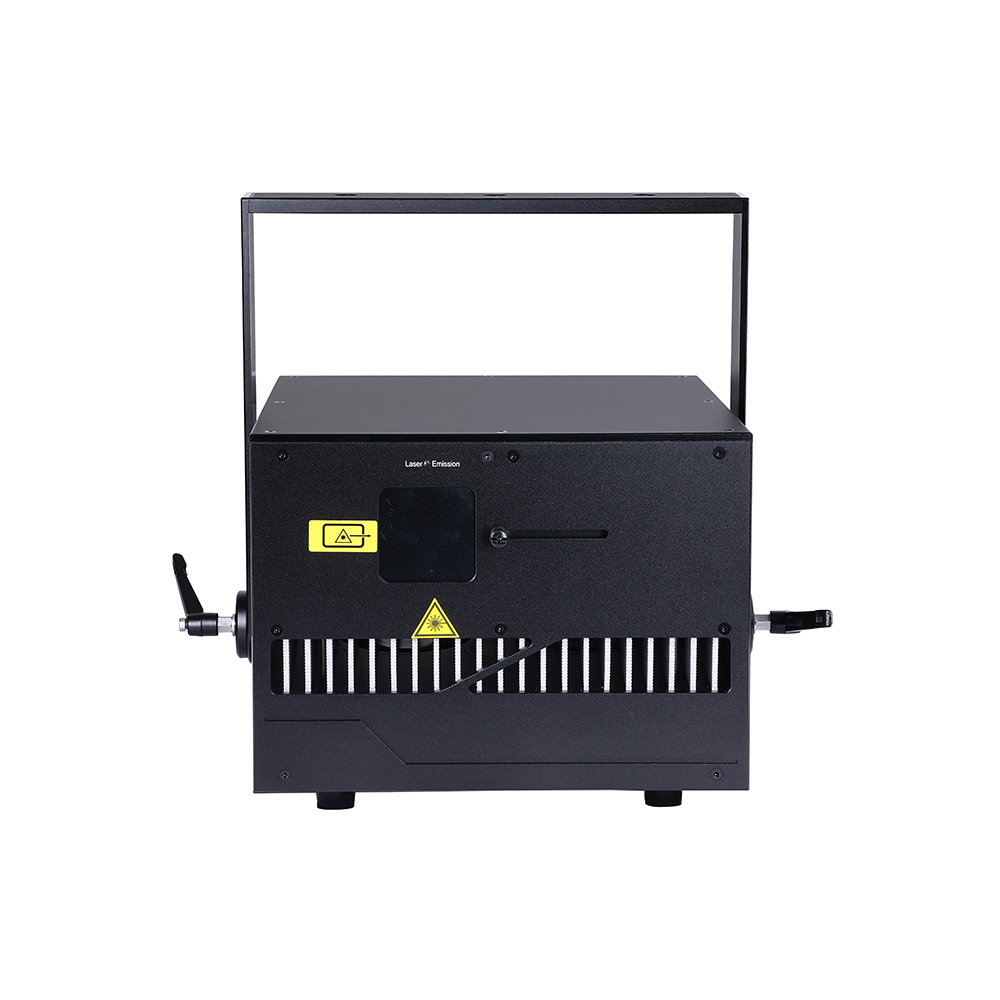

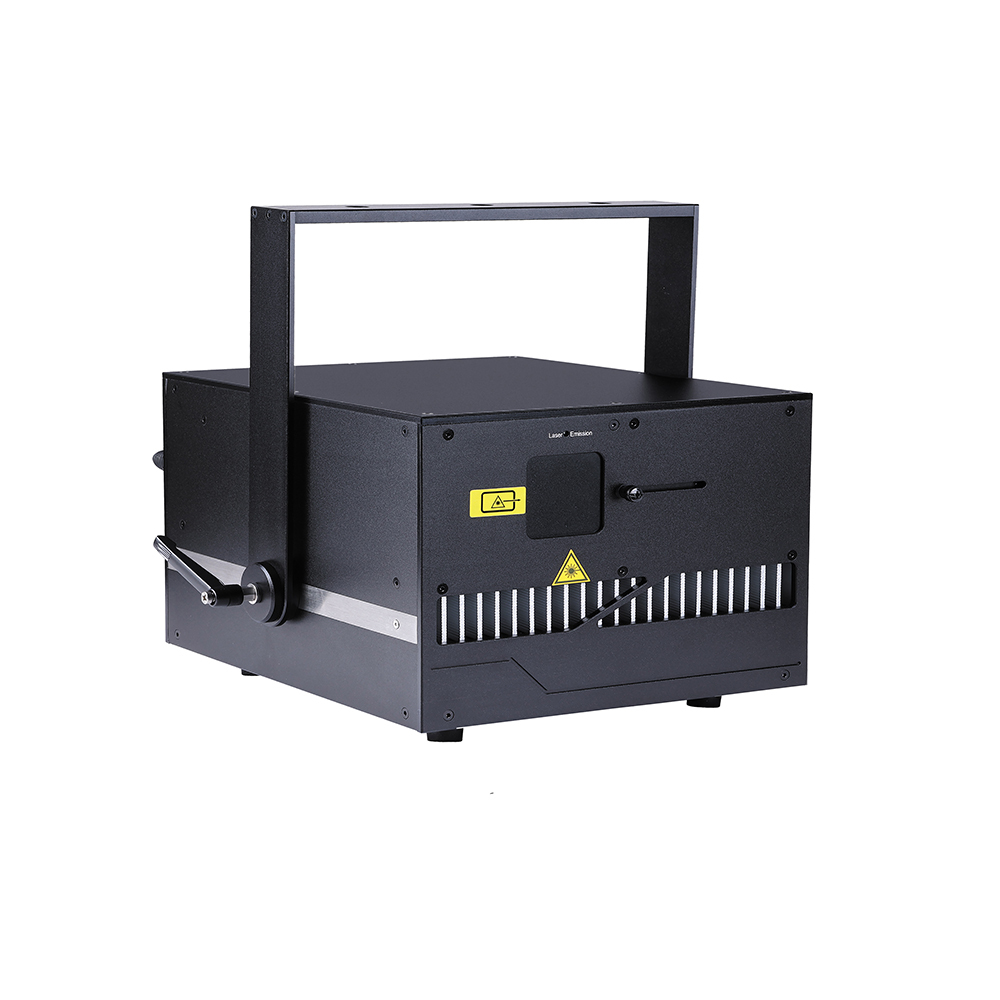

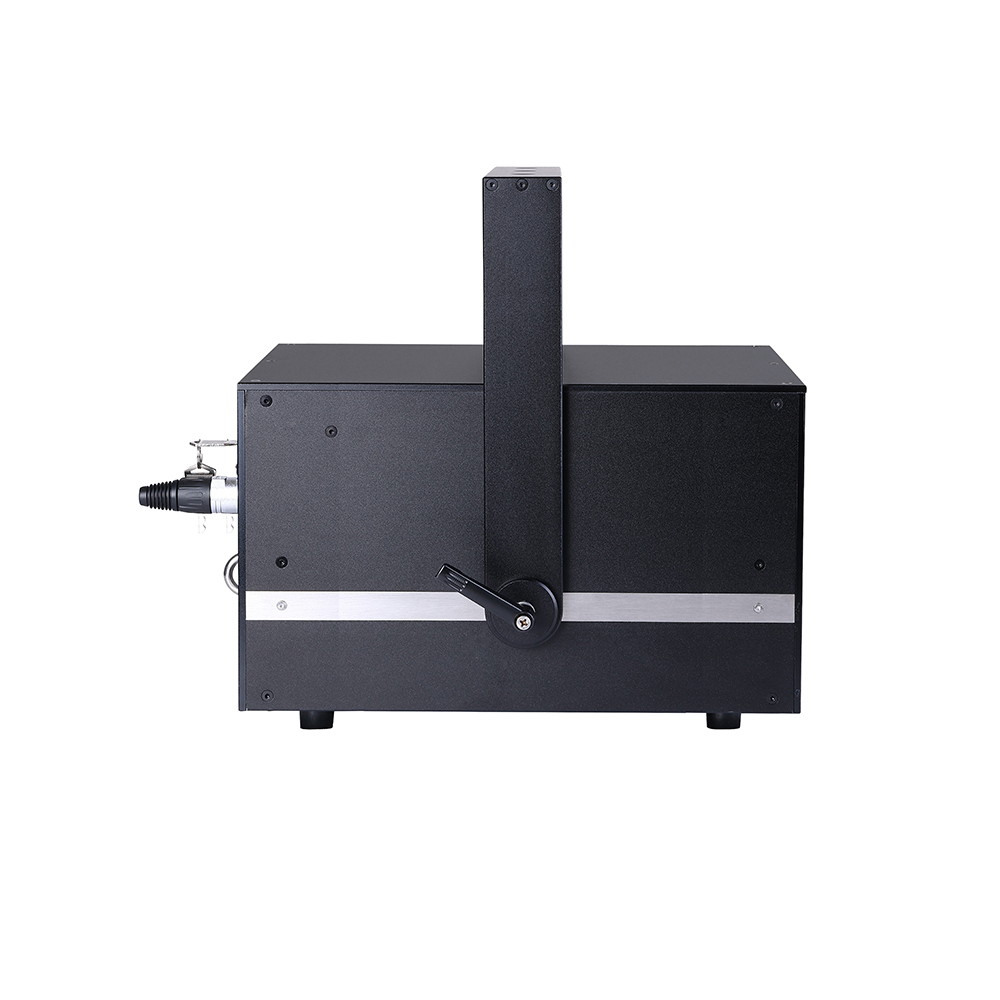

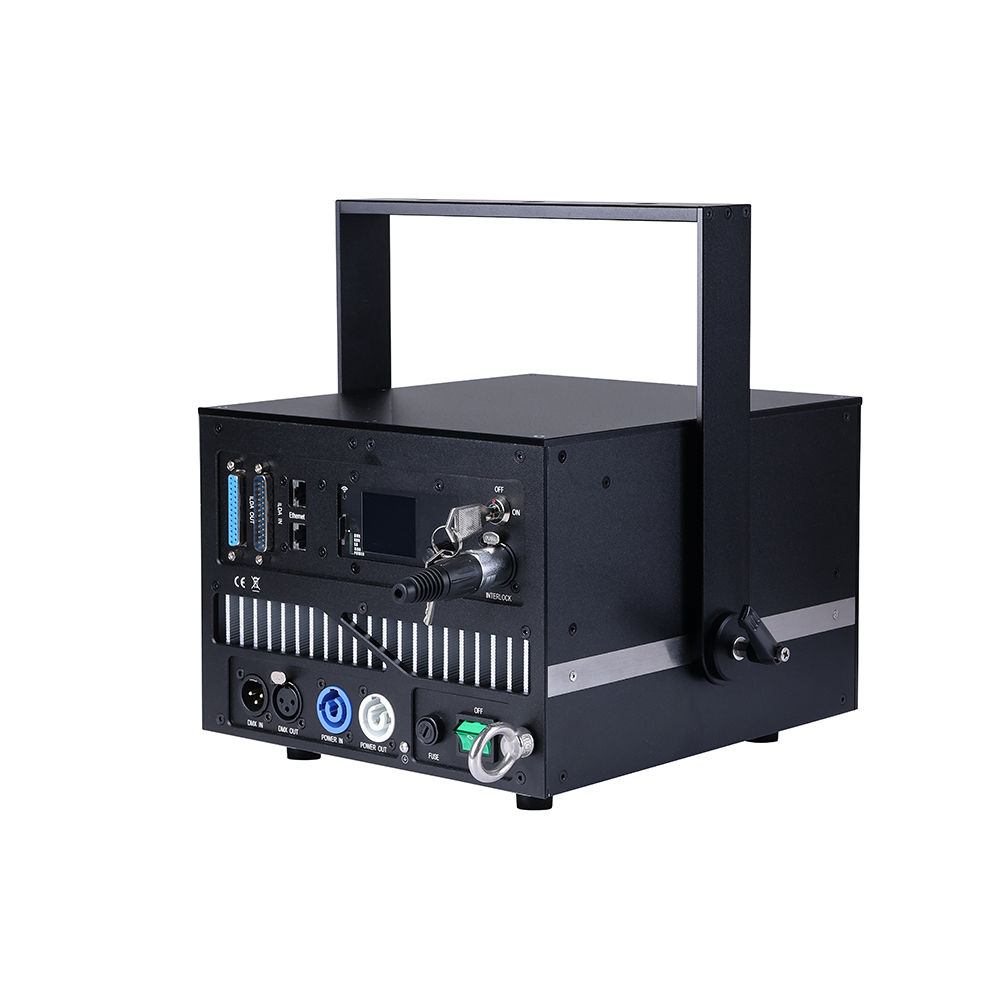

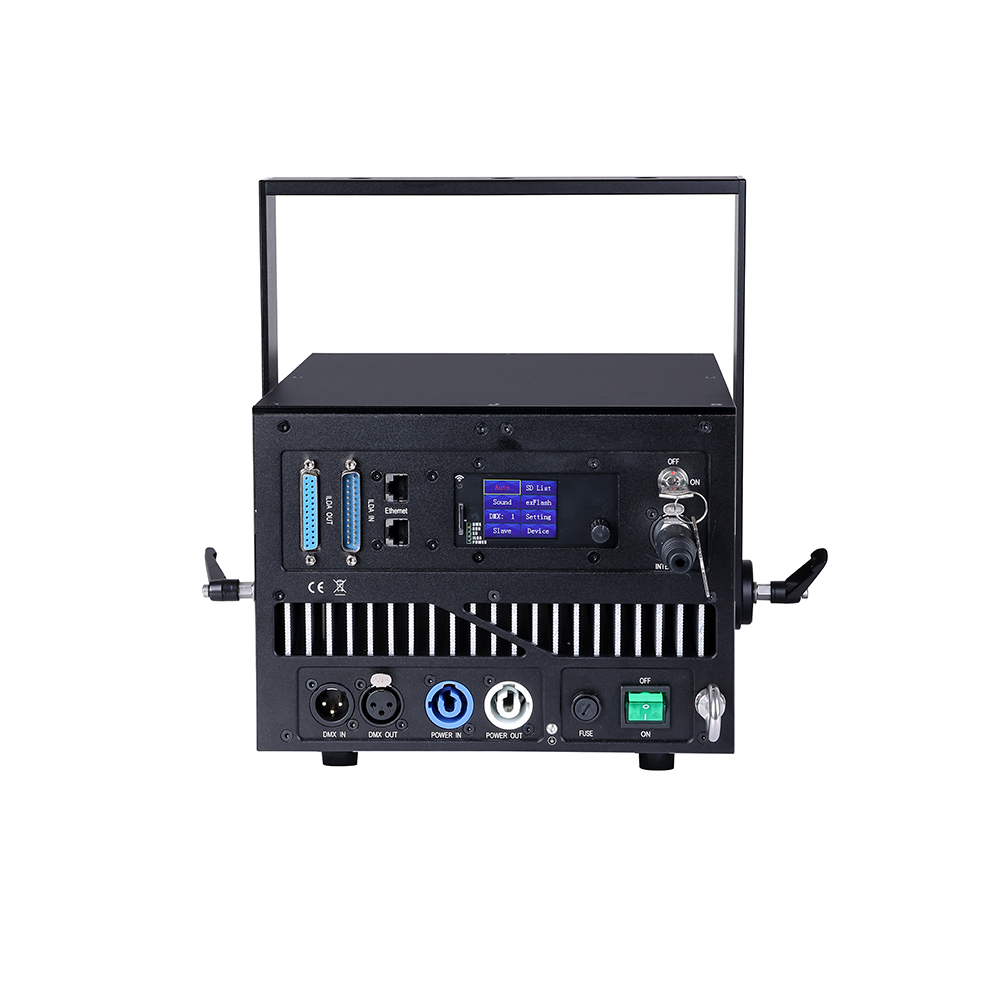

15W RGB Laser

Name: 15W RGB Laser
Brand: Both Lighting
SKU: SKU:BO-CLUB15
Availability: InStock
Rating: 5 (1 reviews)

SKU:BO-CLUB15

15W RGB Full Color Animation Stage Effect Light DJ Disco Stage Beam Lights for Party Wedding Event Lighting Show

Get A Quote Add to Quote List

Main features:

Light Source: 15W RGB
Power: 160W
Divergence angle: ca.6.5mm/＜1.3mrad
Control mode: ILDA, DMX512, SOUND,AUTO,master-slave mode, SD
Laser light source: imported semiconductor diode
Cooling method: air cooling + TEC cooling
Casing material: aluminum

Product Description

Videos

Features

Projects

Product Description

【High-Power 15W RGB Laser System】
Integrates advanced semiconductor laser diodes with 4000mW red (638nm), 5000mW green (520nm), and 6000mW blue (455nm) outputs, achieving a total 15W high-brightness performance. The <1.3mrad beam divergence ensures sharp, long-throw projections with vibrant color saturation.

【Multi-Protocol Control & Precision Scanning】
Supports comprehensive control via ILDA, DMX512, sound activation, auto mode, master-slave synchronization, and SD card operation. The 30kpps high-speed scanning system with 100kHz analog modulation enables complex graphic animations and precise beam movement.

OPTICS

15W RGB Laser
Working temperature: -10C°-45C°

CONTROL

Control mode: ILDA, DMX512, SOUND (sound control),
AUTO (self-propelled), master-slave mode, SD
Modulation mode: analog modulation 100Khz
Scanning system:30kpps ±30°

POWER CONSUMPTION

Voltage: AC110V-240V 50/60Hz
Laser power/wavelength: R (red): 4000mW 638nm
G (green): 5000mW 520nm
B (blue): 6000mW 455nm
Divergence angle: ca.6.5mm/＜1.3mrad

PHYSICAL

Casing material: aluminum
Cooling method: air cooling+ TEC cooling
Size:320(L)*230(w)*190(H)mm
N.W.: 10.6KG
