1. 10W High-Power RGB Laser System Integrates high-performance semiconductor diodes delivering 10W total output (2000mW red/638nm, 2500mW green/520nm, 5500mW blue/455nm) with <1.3mrad beam divergence for intense, long-range projections.
2. Multi-Protocol Control & Precision Scanning Supports ILDA, DMX512, sound activation, auto mode, and RJ45 connectivity. Features 25kpps high-speed scanning with 100kHz analog modulation for seamless graphics and ±30° wide-angle beam coverage.
3. Hybrid Cooling & Robust Construction Combines air cooling and TEC (thermoelectric cooling) technology in an aluminum housing. Operates reliably at -10°C to 45°C with 175W power consumption and global voltage compatibility (AC100-240V).
OPTICS

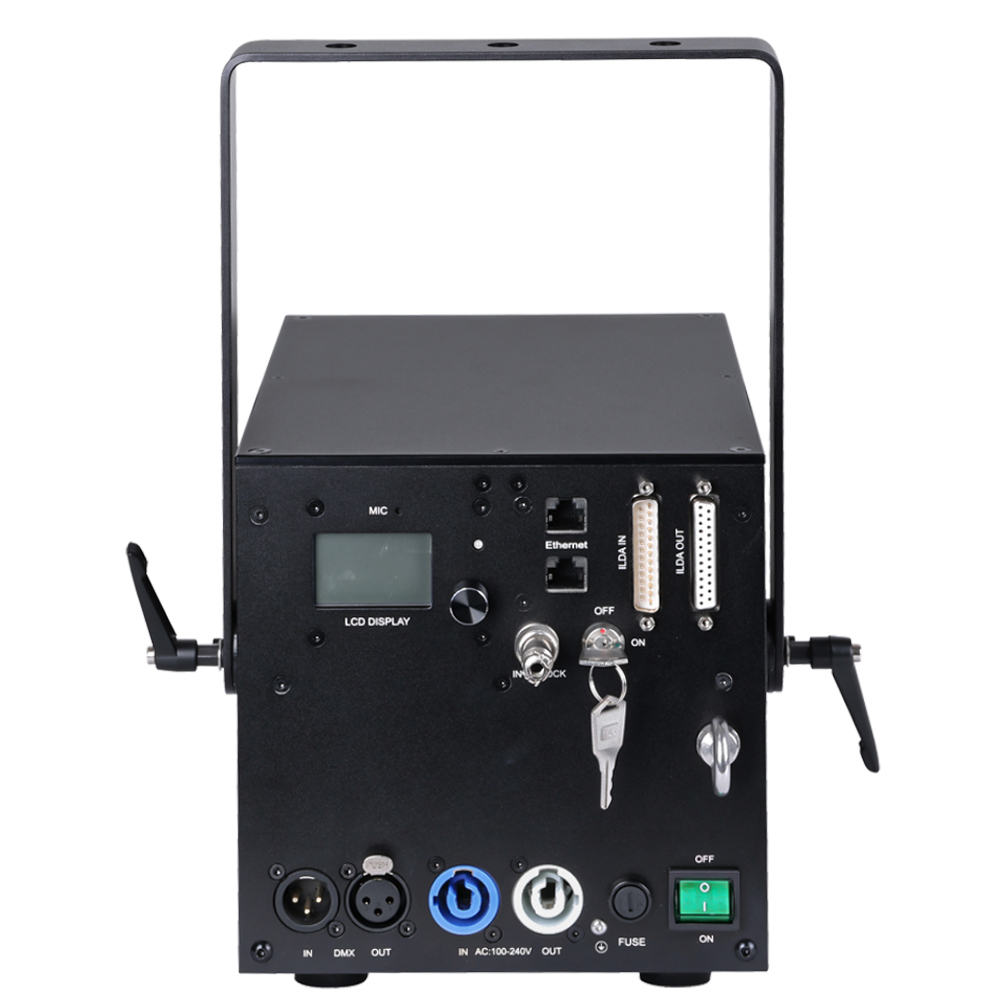

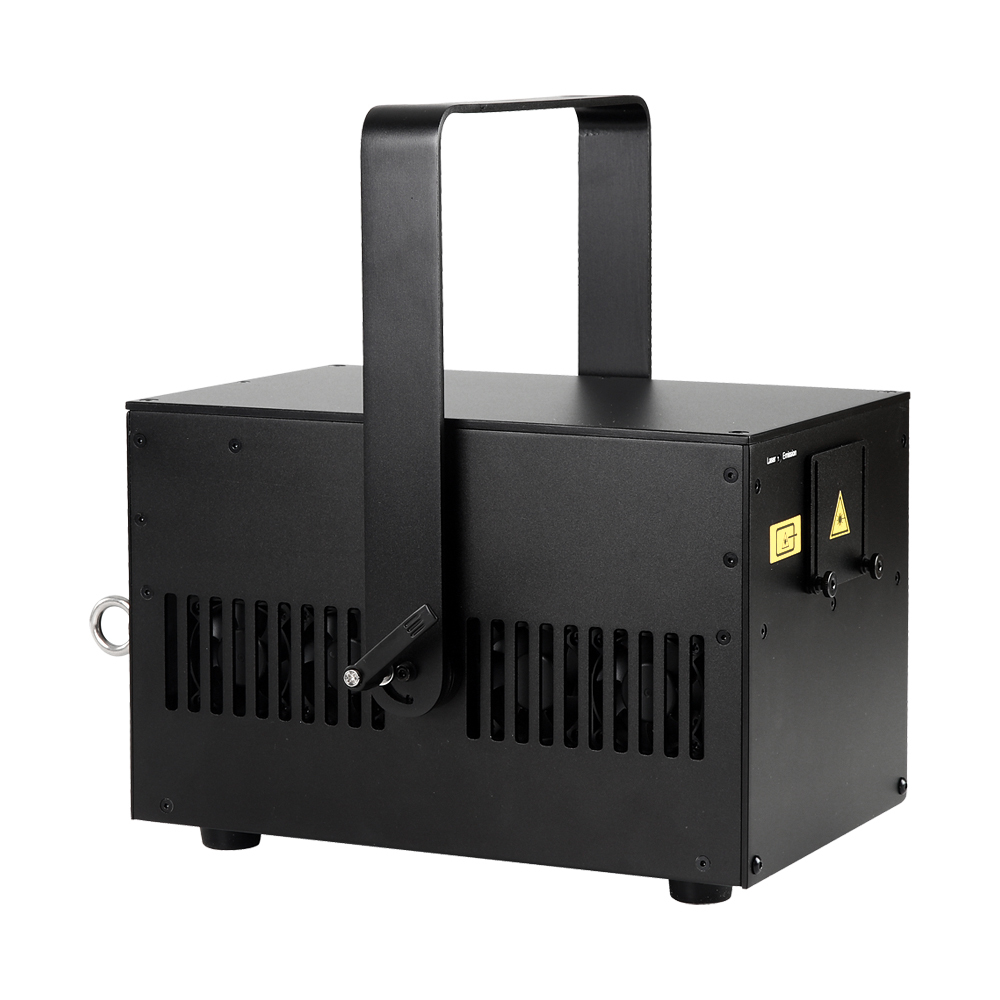

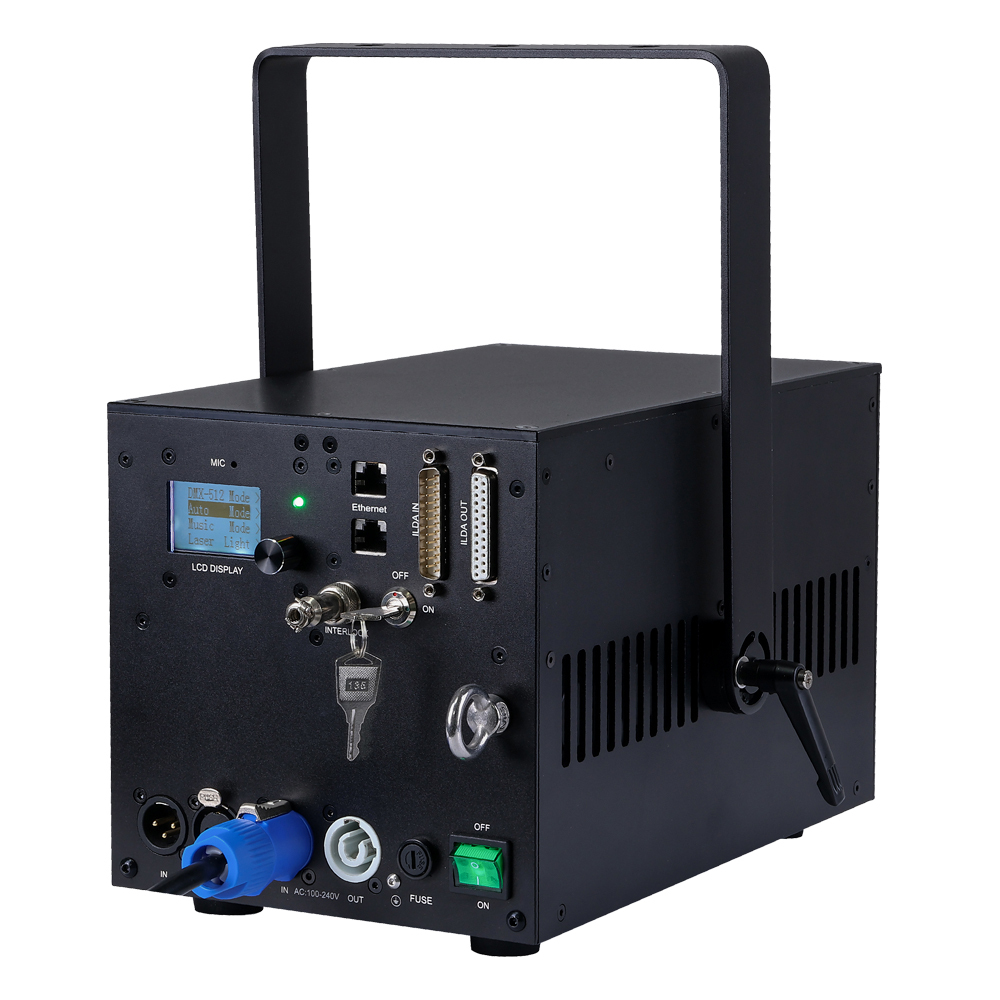

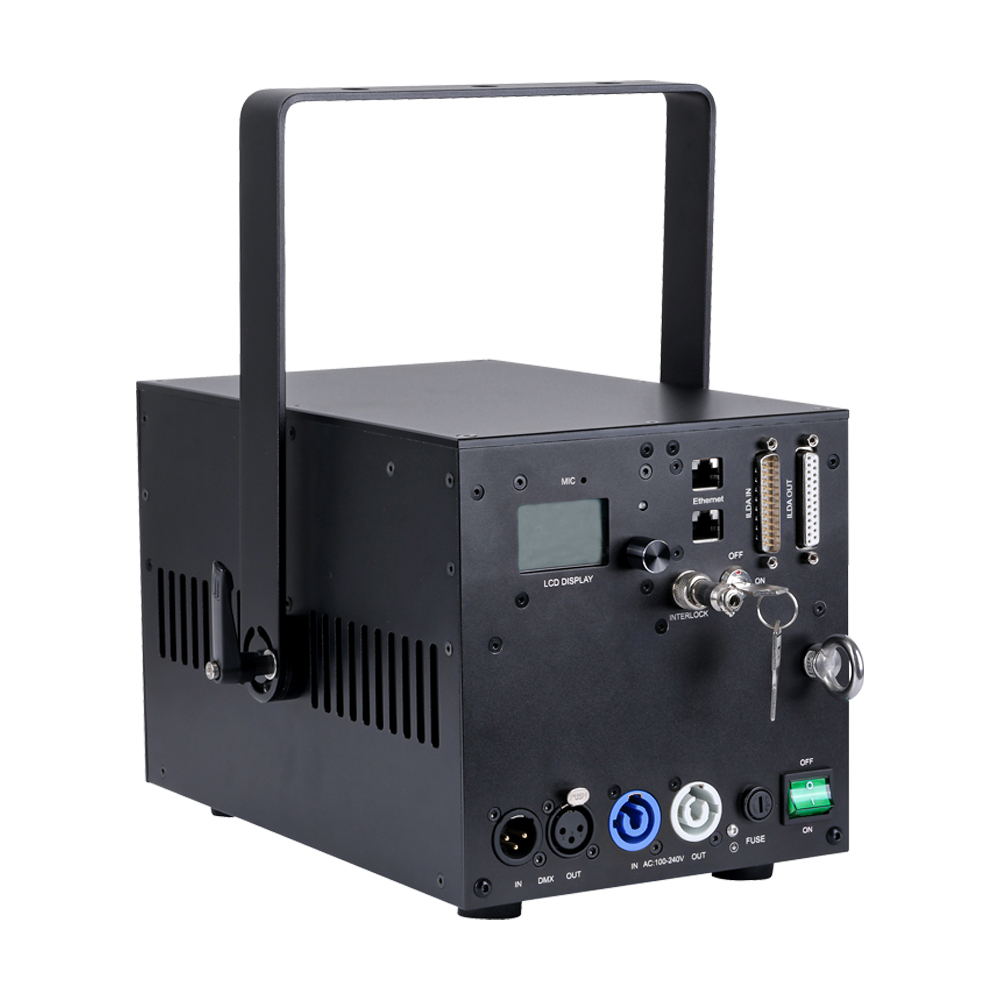

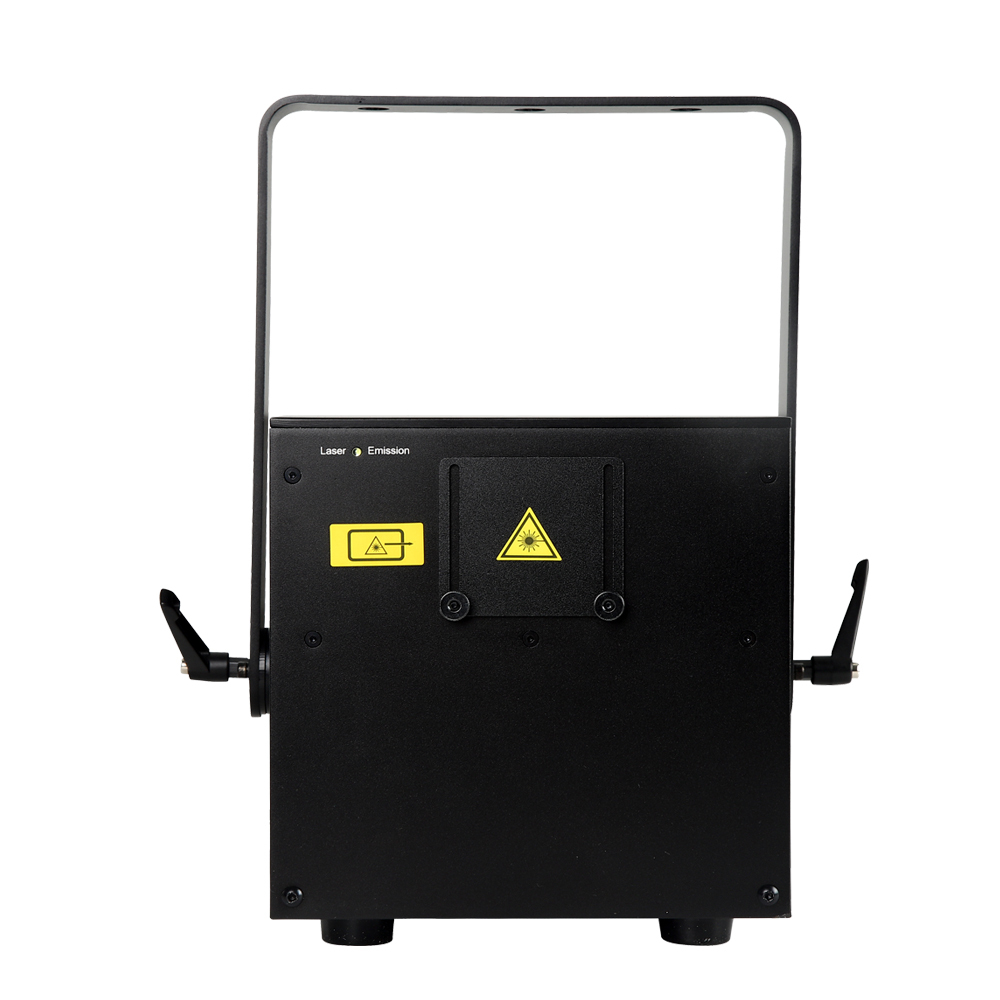

10W RGB Laser
Working temperature: -10C°-45C°
CONTROL
Control mode: Control mode: ILDA, DMX512, SOUND (sound control),AUTO (self-propelled), RJ45
Modulation mode: analog modulation 100Khz
Scanning system: 25kpps ±30°
POWER CONSUMPTION
Voltage: AC110V-240V 50/60Hz
Laser power/wavelength: 2000mW 638nm
G (green): 2500mW 520nm
B (blue): 5500mW 455nm
Full power: Test power after passing through the galvanometer
Divergence angle: ca.5mm/＜1.3mrad
PHYSICAL
Casing material: aluminum
Cooling method: air cooling
Size:290(L)*180(w)*195(H)mm
N.W.: 7.5KG
